Характеристики QSAN XCubeFAS 3126D (XCubeFAS XF3126D)

CPU
Architecture	Active-Active dual-controller
Storage OS	XEVO Specification Details
Processor	Intel® Xeon®
CPU Architecture	64-bit
CPU Frequency	6-Core
Memory
Memory Module Pre-installed	16GB DDR4 ECC RDIMM
Total Memory Slots	6
Memory Expandable up to	384GB
Notes	Per Controller
Storage
Drive Bays	2.5" Slot x 26
Maximum Drive Bays with Expansion Unit	-
Compatible Drive Type	2.5" U.2 dual port NVMe SSD
Drive Interface	NVMe
Maximum Internal Raw Capacity	399TB
Maximum Raw Capacity with Expansion Units	-
Hot Swappable Drive
Notes	For more information, please refer to compatibility matrix and hardware manual Maximum Internal Raw Capacity = 15.36 TB drive x 26 Capacity may vary by RAID types
External Port
USB 2.0 Port	1 (Front)
USB 3.0 Port	1 (Rear)
HDMI Port	-
Others	UPS Port x1 Controller port x 1
Notes	Per controller
Connectivity Port
1GbE RJ45 LAN Port	1 (Onboard Management Port)
10GbE RJ45 LAN Port	2 iSCSI (Option)
10GbE SFP+ LAN Port	2 iSCSI (Onboard) 4 iSCSI (Option)
Thunderbolt 3	-
25GbE SFP28 LAN Port	2 iSCSI (Option)
16Gb SFP+ Fibre Channel	4 (Option) 2 (Option)
32Gb SFP28 Fibre Channel	2 (Option)
Notes	For more information, please refer to accessory book Please refer to the section below for expansion slot specification
Expansion Port
12Gb/s SAS Wide Port	-
Notes	-
PCIe Expansion
Gen3x8 Slot	-
Gen3x4 Slot	-
Notes	-
Host Card Expansion
Gen3x8 Slot	2
Gen2x4 Slot	-
Notes	-
Appearance
Dimension (H x W x D) (mm)	132 x 438 x 645
Chassis Form Factor	19" Rackmount 3U 26 Bay
Net Weight (kg)	25.6
Gross Weight (kg)	34
Notes	-
Memory Protection
Super Capacitor Module + Flash Module	-
Battery Backup Module + Flash Module	-
Notes	-
Others
System Fan	4 pcs (per controller)
Replaceable System Fan
Power Recovery
Scheduled Power On/Off	-
Wake on LAN/WAN
Power Supply Unit / Adapter	800W x 2 (80 PLUS Platinum)
Redundant Power Supply
AC Input Power Voltage	100V-240V
Power Frequency	50-60 Hz, Single Phase
Power Consumption	429W
British Thermal Unit	-
LCM Support
Notes	-
Environment Temperature
Operating Temperature	0 to 40°C
Storage Temperature	-15°C to 55°C
Operating Relative Humidity	20% to 80% non-condensing
Non-operating Relative Humidity	5% to 95%
Notes	-
Certification
Certifications	CE FCC BSMI
Notes	-
Warranty
Standard Warranty	3 years Battery backup module : 1 year
Notes	-

XCubeFAS XF3126D

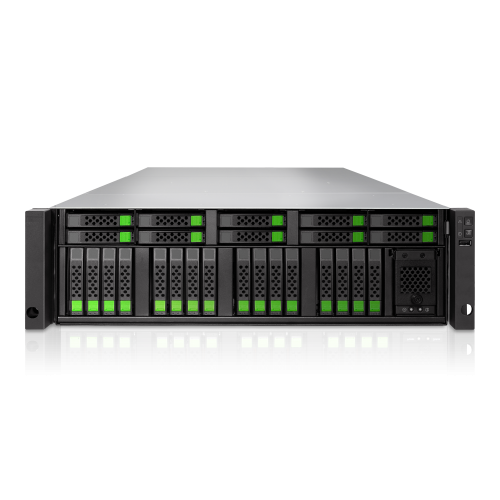

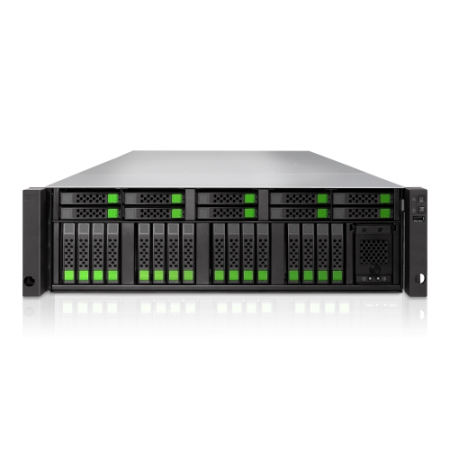

QSAN XCubeFAS 3126D (XCubeFAS XF3126D)
