| Architecture |
Active-Active dual-controller |
| Storage OS |
XEVO Specification Details |
| CPU |
| Processor |
Intel® Xeon® |
| CPU Architecture |
64-bit |
| CPU Frequency |
6-Core |
| Memory |
| Memory Module Pre-installed |
16GB DDR4 ECC RDIMM |
| Total Memory Slots |
6 |
| Memory Expandable up to |
384GB |
| Notes |
Per Controller |
| Storage |
| Drive Bays |
2.5" Slot x 26
|
| Maximum Drive Bays with Expansion Unit |
- |
| Compatible Drive Type |
2.5" U.2 dual port NVMe SSD
|
| Drive Interface |
NVMe
|
| Maximum Internal Raw Capacity |
399TB |
| Maximum Raw Capacity with Expansion Units |
- |
| Hot Swappable Drive |
|
| Notes |
- For more information, please refer to compatibility matrix and hardware manual
- Maximum Internal Raw Capacity = 15.36 TB drive x 26
- Capacity may vary by RAID types
|
| External Port |
| USB 2.0 Port |
1 (Front) |
| USB 3.0 Port |
1 (Rear) |
| HDMI Port |
- |
| Others |
UPS Port x1
Controller port x 1 |
| Notes |
Per controller |
| Connectivity Port |
| 1GbE RJ45 LAN Port |
1 (Onboard Management Port) |
| 10GbE RJ45 LAN Port |
2 iSCSI (Option) |
| 10GbE SFP+ LAN Port |
2 iSCSI (Onboard)
4 iSCSI (Option) |
| Thunderbolt 3 |
- |
| 25GbE SFP28 LAN Port |
2 iSCSI (Option) |
| 16Gb SFP+ Fibre Channel |
4 (Option)
2 (Option) |
| 32Gb SFP28 Fibre Channel |
2 (Option) |
| Notes |
For more information, please refer to accessory book
Please refer to the section below for expansion slot specification
|
| Expansion Port |
| 12Gb/s SAS Wide Port |
- |
| Notes |
- |
| PCIe Expansion |
| Gen3x8 Slot |
- |
| Gen3x4 Slot |
- |
| Notes |
- |
| Host Card Expansion |
| Gen3x8 Slot |
2 |
| Gen2x4 Slot |
- |
| Notes |
- |
| Appearance |
| Dimension (H x W x D) (mm) |
132 x 438 x 645 |
| Chassis Form Factor |

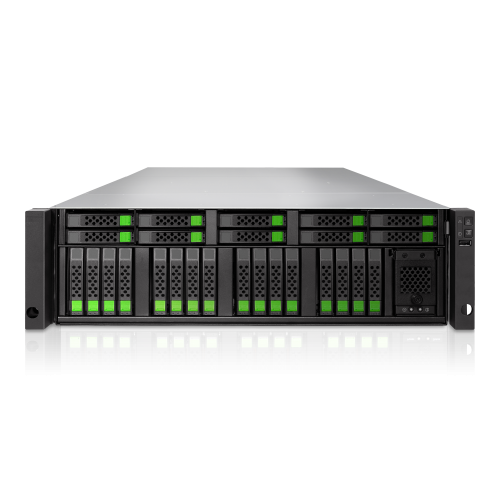

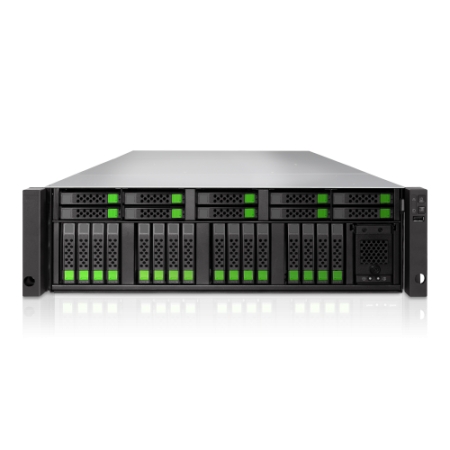

19" Rackmount 3U 26 Bay |
| Net Weight (kg) |
25.6 |
| Gross Weight (kg) |
34 |
| Notes |
- |
| Memory Protection |
| Super Capacitor Module + Flash Module |
- |
| Battery Backup Module + Flash Module |
- |
| Notes |
- |
| Others |
| System Fan |
4 pcs (per controller) |
| Replaceable System Fan |
|
| Power Recovery |
|
| Scheduled Power On/Off |
- |
| Wake on LAN/WAN |
|
| Power Supply Unit / Adapter |
800W x 2 (80 PLUS Platinum) |
| Redundant Power Supply |
|
| AC Input Power Voltage |
100V-240V |
| Power Frequency |
50-60 Hz, Single Phase |
| Power Consumption |
429W |
| British Thermal Unit |
- |
| LCM Support |
|
| Notes |
- |
| Environment Temperature |
| Operating Temperature |
0 to 40°C |
| Storage Temperature |
-15°C to 55°C |
| Operating Relative Humidity |
20% to 80% non-condensing |
| Non-operating Relative Humidity |
5% to 95% |
| Notes |
- |
| Certification |
| Certifications |
CE
FCC
BSMI
|
| Notes |
- |
| Warranty |
| Standard Warranty |
3 years
Battery backup module : 1 year |
| Notes |
- |
