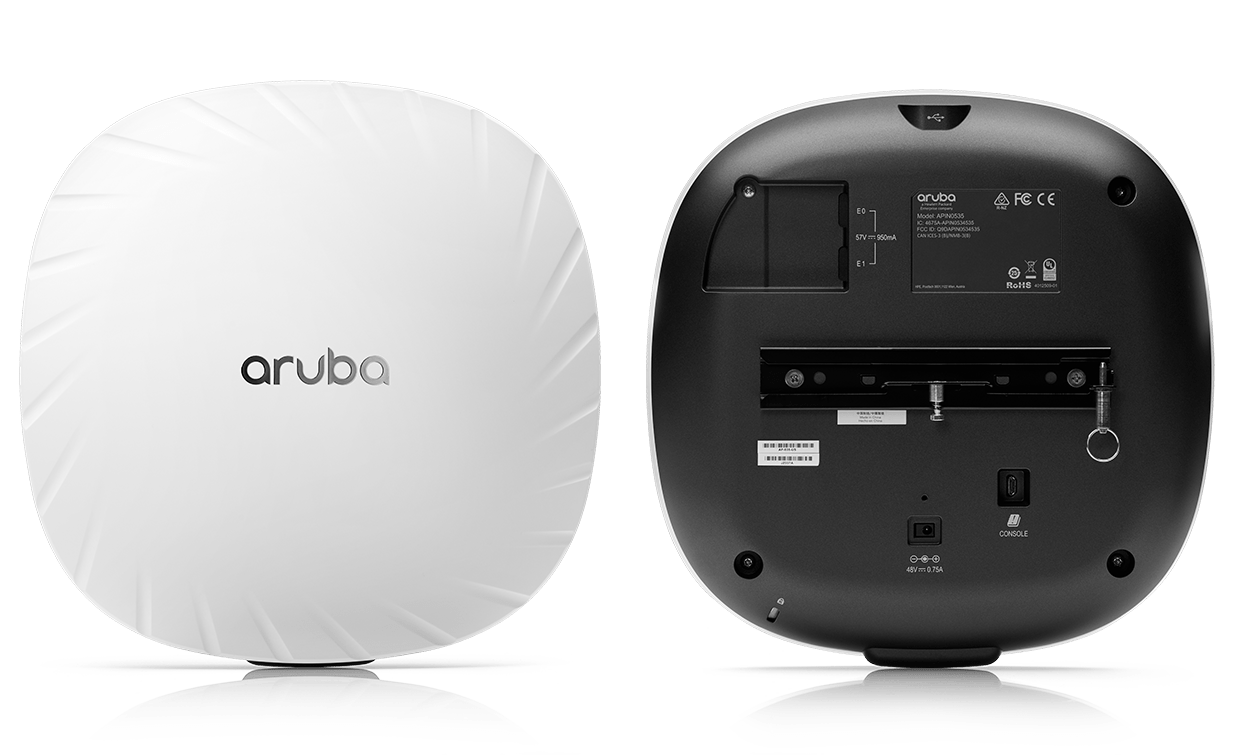

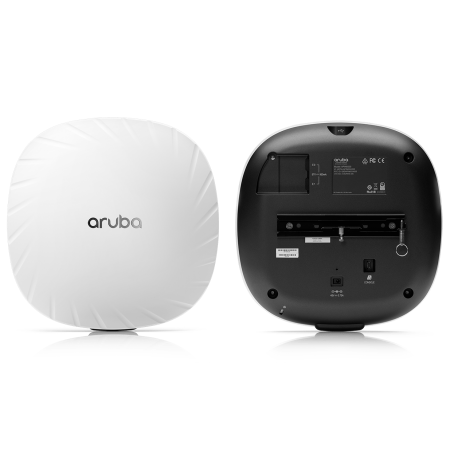

Точки доступа Aruba 530

• AP-534: модель с внешней антенной
• AP-535: модель с внутренней антенной

• От 2,400 до 2,4835 ГГц
• От 5,150 до 5,250 ГГц
• От 5,250 до 5,350 ГГц
• От 5,470 до 5,725 ГГц
• От 5,725 до 5,850 ГГц

• 802.11b
• 802.11a/g/n/ac
• 802.11ax

• 802.11b: BPSK, QPSK, CCK
• 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
• 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
• 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

• 802.11b: 1, 2, 5.5, 11
• 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
• 802.11n: 6.5 to 600 (MCS0 to MCS31, HT20 to HT40), 800 with 256-QAM
• 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160), 2,166 with 1024-QAM
• 802.11ax (2.4GHz): 3.6 to 1,147 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE40)
• 802.11ax (5GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)

• 2.4 GHz band: +24 dBm (18dBm per chain)
• 5 GHz band: +24 dBm (18 dBm per chain)

• AP-534: Four (female) RP-SMA connectors for external dual band antennas (A0 through A3, corresponding with radio chains 0 through 3). Worst-case internal loss
  between radio interface and external antenna connectors (due to diplexing circuitry): 0.8dB in 2.4GHz and 1.3dB in 5GHz.
• AP-535: Four integrated dual-band downtilt omni- directional antennas for 4x4 MIMO with peak antenna gain of 3.5dBi in 2.4GHz and 5.4dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.

• Auto-sensing link speed (100/1000/2500/5000BASE-T) and MDI/MDX
• 2.5Gbps and 5Gbps speeds comply with NBase-T and 802.3bz specifications
• POE-PD: 48Vdc (nominal) 802.3af/at/bt POE (class 3 or higher)
• 802.3az Energy Efficient Ethernet (EEE)

Link aggregation (LACP) support between both network ports for redundancy and increased capacity

POE power can be drawn from either port (single source, or set to prioritize) or both ports simultaneously (set to combine) When set to prioritize, the AP draws power from E0 and may failover to E1.

DC power interface: 48Vdc (nominal, +/- 5%), accepts 1.35mm/3.5mm center-positive circular plug with 9.5mm length

USB 2.0 host interface (Type A connector)

• Capable of sourcing up to 1A / 5W to an attached device

Bluetooth 5.0 Low Energy (BLE5.0) and Zigbee (802.15.4) radio

• BLE: up to 8dBm transmit power (class 1) and -95dBm receive sensitivity
• Zigbee: up to 8dBm transmit power and 99dBm receive sensitivity
• Integrated vertically polarized omnidirectional antenna with roughly 30 degrees downtilt and peak gain of 3.1dBi (AP-535) or 5.0dBi (AP-534)

Serial console interface (proprietary, micro-B USB physical jack)

Kensington security slot

• DC powered: 23.3W
• POE powered (802.3bt or dual 802.3at): 26.4W
• POE powered (802.3at, IPM disabled): 23.3W

• Температура: от 0 ° C до + 50 ° C
• Влажность: от 5% до 93% без конденсации

• Температура: от -40 ° C до + 70 ° C
• Влажность: от 5% до 93% без конденсации

• FCC/ISED
• CE Marked
• RED Directive 2014/53/EU
• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• UL/IEC/EN 60950
• EN 60601-1-1, EN60601-1-2

• UL2043 plenum rating
• Wi-Fi Alliance:
  • Wi-Fi CERTIFIED a, b, g, n, ac
  • Wi-Fi CERTIFIED ax
  • WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open ( OWE)
  • WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband
  • Wi-Fi Location
  • Passpoint (release 2)
• Bluetooth SIG
• Ethernet Alliance (POE, PD device, class 4)
