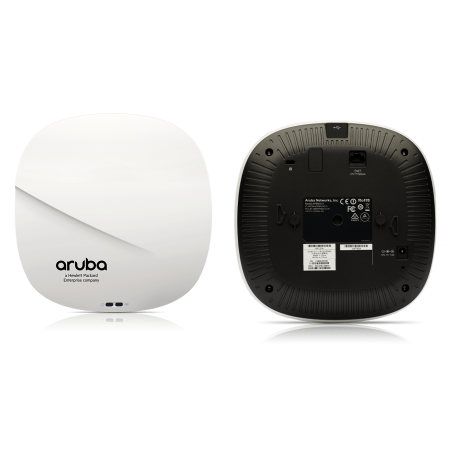

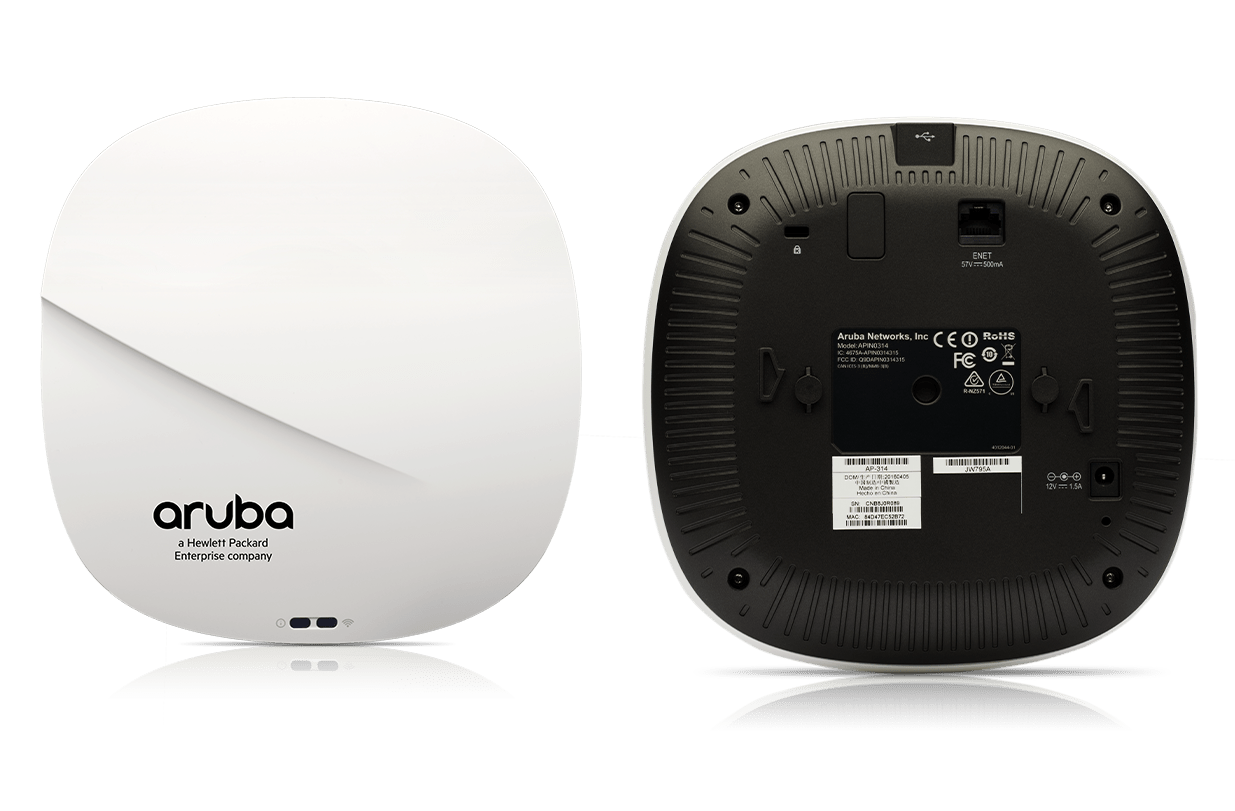

Точки доступа Aruba 310

• AP-314 (controller-managed) and IAP-314 (Instant):
  • 802.11ac - 5GHz 4x4 MIMO (1,733Mbps max rate) and 2.4GHz 2x2 MIMO (300Mbps max rate) radios, with a total of four dual-band RP-SMA connectors for external antennas

• AP-315 (controller-managed) and IAP-315 (Instant):
  • 802.11ac - 5GHz 4x4 MIMO (1,733Mbps max rate) and 2.4GHz 2x2 MIMO (300Mbps max rate) radios, with a total of four integrated omni-directional downtilt dual-band antennas

• От 2,400 до 2,4835 ГГц
• От 5,150 до 5,250 ГГц
• От 5,250 до 5,350 ГГц
• От 5,470 до 5,725 ГГц
• От 5,725 до 5,850 ГГц

• 802.11b
• 802.11a/g/n/ac

• 802.11b: BPSK, QPSK, CCK
• 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

• 802.11b: 1, 2, 5.5, 11
• 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
• 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)
• 802.11n (5GHz): 6.5 to 600 (MCS0 to MCS31)
• 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160)

• 2.4GHz band: +18 dBm per chain, +21dBm aggregate (2x2)
• 5GHz band: +18 dBm per chain, +24dBm aggregate (4x4)

• AP-314/IAP-314: Four RP-SMA connectors for external dual band antennas. Worst-case internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 0.6dB in 2.4GHz and 1.2dB in 5GHz.
• AP-315/IAP-315: Four integrated dual-band downtilt omni-directional antennas for 4x4 MIMO with maximum antenna gain of 3.6dBi in 2.4GHz and 6.0dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.

• Auto-sensing link speed and MDI/MDX

802.3az Energy Efficient Ethernet (EEE)

USB 2.0 host interface (Type A connector)

Bluetooth Low Energy (BLE) radio

Up to 4dBm transmit power (class 2) and -91dBm receive sensitivity

Integrated antenna with roughly 30 degrees downtilt and peak gain of 3.4dBi (AP-314/IAP-314) or 1.5dBi (AP-315/IAP-315)

Serial console interface (proprietary; optional adapter cable available)

Kensington security slot

• Температура: от 0 ° C до + 50 ° C
• Влажность: от 5% до 93% без конденсации

• Температура: от -40 ° C до + 70 ° C

• FCC/Industry of Canada
• CE Marked
• R&TTE Directive 1995/5/EC
• Low Voltage Directive 72/23/EEC
• EN 300 328
• EN 301 489
• EN 301 893
• UL/IEC/EN 60950
• EN 60601-1-1 and EN 60601-1-2

• CB Scheme Safety, cTUVus
• UL2043 plenum rating
• Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac
• Passpoint® (Release 2) with ArubaOS and Instant 8.3+

• ArubaOS 6.5.0.0
• Aruba InstantOS 4.3.0.0
